    • Ultra Precision Site Recognition
• Superior Alignment Speed & Flexibility
• Precision Target Site Imaging
• Maximum Sensitivity for Delicate
Part Placement
• Pixel Colorization of Pads for the
Ultimate Contrast
• Optical Zoom & Auto Focus for
Superior Image Quality
• Magnified Imaging of Micro Size Parts
• Award Winning Service & Support!
Download Literature >

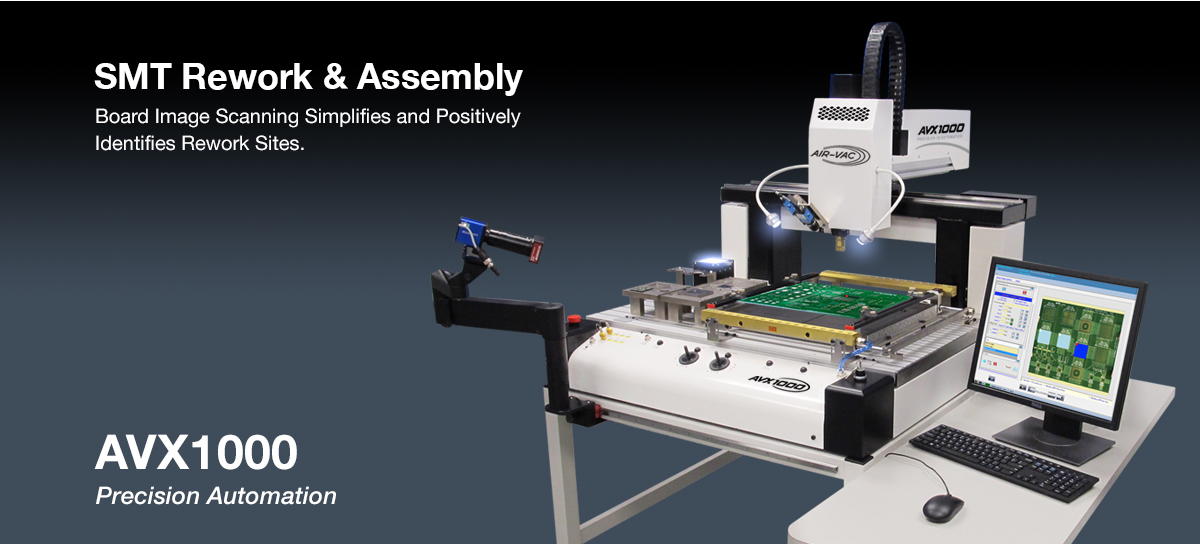

Fully Automated SMT Rework & Assembly



100mm BGA Align and Place Example



01005 Pick, Place, Align Example









High Speed Force Feedback Provides Maximum Sensitivity
for Delicate Component Placement.

Fully Automated and Configurable for SMT Rework & Assembly
• Pick and place, site clean, dispense
• 270˚ degree theta motion
• Pneumatic nozzle clamps hold large/heavy nozzles firmly in platform head
• Fiducial recognition
• Automatic tooling changer
• Custom platform head designs available









Unlimited Component Size for Alignment/Reflow

• 01005 to 125mm BGA
• Single and multiple field of view options offer superior alignment
speed and flexibility

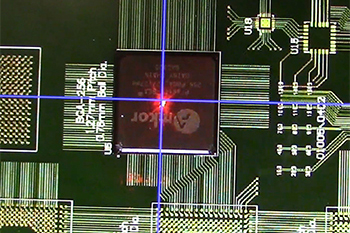

• Laser pointer provides quick object targeting on large or small boards
• Nozzles for any size/type component

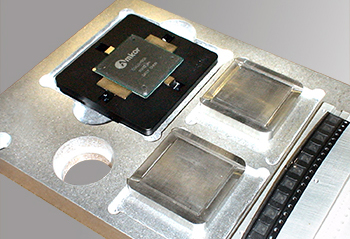

Custom Application Plate

• Waffle trays
• Tape strips
• Individual components
• Flux dipping

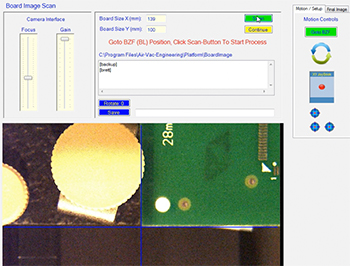

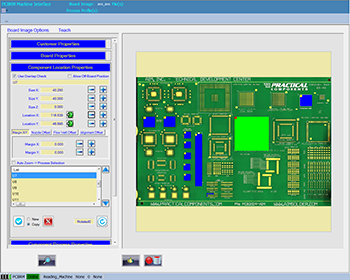

Board Scanning Provides an Accurate Board Background Image to Simplify the Selection of a Target Site.

Database Driven Process Tasks Allow Maximum Flexibility

• Customization of existing process tasks
• Unlimited capability for new process tasks
• New hardware peripherals can be easily configured

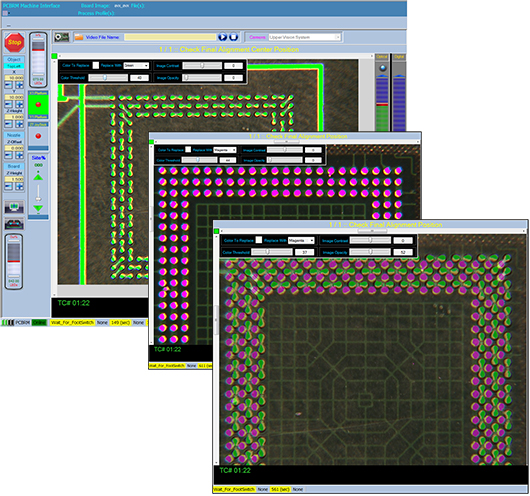

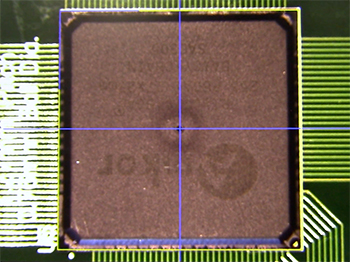

Dual Color Camera Interface Offers Unique Processing Options
• Pixel colorization of leads and/or pads
• Unlimited image blend adjustment provides maximum contrast for leads
and pads
• Alignment images automatically saved for later review
• Optical zoom, auto-focus features provide superior image quality
• Live digital zoom provides clear, magnified imaging of extremely
small objects

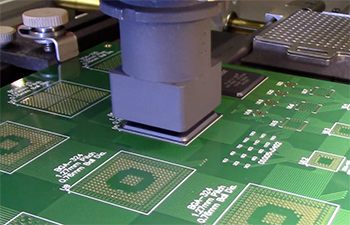

Site Clean Camera

• Moves with the site clean nozzle to keep the site pads in focus during the entire site cleaning process

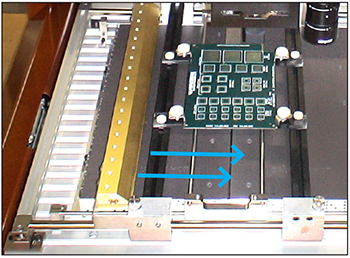

Board Carrier and Air Knife
• Expandable and rigid board carrier and built-in air knife for board cooldown

Bottom Heater
• Dual zone bottom heater and adjustable spot heater

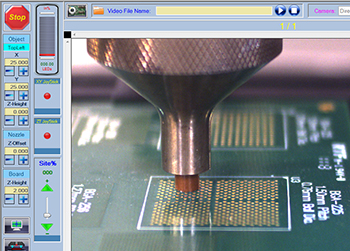

Site Clean Camera View







AVX1000 Performance Options
• Bottom Convective Spot Heater Assembly
• Board Cooling System
• Direct View Camera
• Head-Mounted Site Cleaning Camera
• Board Temperature IR Sensor with Laser Pointer
• Site Cleaning Package

• Four (4) additional Thermocouple Channels (8 total)

AVX1000 Tooling Options
• Standard Application Plate
• Two-Pocket Automatic Nozzle Changer
• Adjustable Component Insertion Tool
• 14 Standard EZ Nozzles
• Paste-On-Device Stencil Adaptor
• Ergonomic Workstation 42" x 72"
• Monitor Stand for Workstation

AVX1000 Specifications
• Max Board Size: 10" x 24" (8" x 16" Bottom Heater, 2500 watts, 1 zone)
• Max Board Size: 18" x 24" (16" x 16" Bottom Heater, 5000 watts, 2 zone)
• Max Board Size: 24" x 24" (24" x 16" Bottom Heater, 7500 watts, 3 zone)
• Max Component Size in Vision: 150mm
• Placement Force (Z-Axis): 25 gram min
• Placement Accuracy: 15um
• Clearance (topside/bottomside): 120mm/34mm
• Top Heater: Hot Gas, 2000 watts
• Contact Air-Vac for full Facility Requirements.

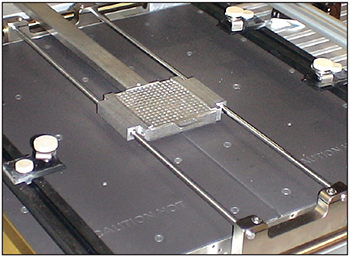

Spot Heater Assembly




Board Cooling System (Air Knife)
