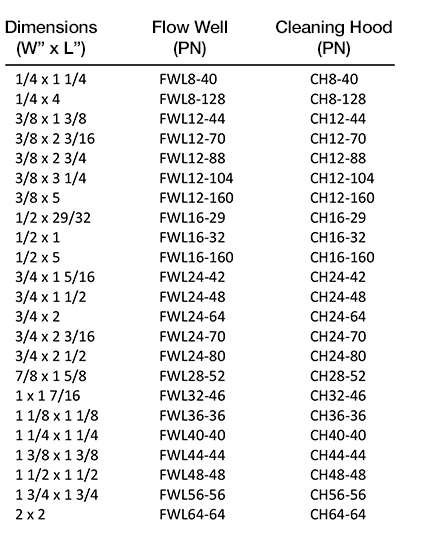

Popular Flow Wells and Cleaning Hoods:
For Lead-Free applications (material is titanium):

Buy Online >
Popular Flow Wells and Cleaning Hoods can be easily purchased
in the Air-Vac Web Store.














Custom Flow Well examples (above and right):

A - A square flow well can flow solder outwards,
•--- protecting components in the center.

B - A square flow well can flow solder inwards, protecting
•--- components along the outside of the square.

C - L-shaped flow wells flow solder over the ends, protecting
•- - adjacent components along the sides of the assembly.

D - Different shaped flow wells can flow solder in different
•--- directions, away from adjacent components.

E - Two narrow flow wells have solder flowing over only
•--- one end.














For a No Obligation Tooling Quote, simply email Air-Vac the following:
• Detailed drawing or photo directly over the site that includes the surrounding adjacent components.
• Component Specification Sheet or 3D Solid Model (step203 format).
Click here to email Air-Vac.








Hand Held Vacuum Desoldering Tools for Through-Hole Component "Touch-Up" are also available:

The PVSG Desoldering Iron utilizes a tubular tip which transmits heat to an individual solder joint and vacuum removes the solder, leaving leads and holes clean.

Instant high vacuum with the simple touch of a button. No need for a separate vacuum module, the PVSG operates directly from compressed air.

Buy Online >
