KEY FEATURES:
• Uniform Preheat Surface: +/- 5˚
• Perfect for Medium to High-Mass Assemblies
• Minimizes the Process Temperature
• Minimizes Risk of Thermal Damage
• Speeds Up Repair

Quick Links:
PHS1500/4000 Literature



Thermal Uniformity

Near Perfect High Thermal Uniformity
Using the Air-Vac Preheater (left) vs. the competitors uneven heat (right).






Preheat Benefits
Use on medium to high mass assemblies that can heat
sink significant amounts of energy from a hand tool or solder
pot rework.
Minimizes the process temperature. Ideal for lead-free
applications where the high melt alloy requires a high
process temperature.
Minimizes risk of thermal damage. Ideal for fine pitch
assemblies where pad damage is most prevalent.
Activates flux. Ensures volatile and water removal.
For reflow rework,
reduces thermal gradient,
therefore,
minimizing localized pcb warpage.

Establishes a uniform starting process
condition for
enhanced process control.



Enhance Your Rework Procedures
The PHS Preheater is the ideal accessory for circuit
board repair and assembly
and will easily integrate into
any existing workstation.
The infrared preheater provides ample, uniform heat to
accommodate both tin-lead and lead-free applications.
An audible alarm indicates when the desired temperature
has been reached.
The compact design features a sturdy board carrier and
cushioned armrest to provide a safe and comfortable
platform for operators.

Eliminates operator handling of preheated assembly.



A Great Combo for Effective Lead-Free
and/or thermally Challenging Rework
or Selective Soldering


The PCBRM15 Module

Controlled mini-wave with component specific shape and flow heats all leads simultaneously for component removal and replacement. Preset controls for temperature, time, and pump speed.

PHS Preheater
Infrared panel reduces the process temperature and time.



Laser Pointer

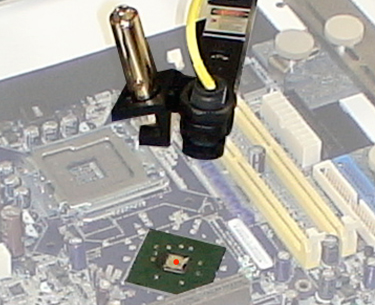

Temperature Sensor/Laser Pointer (optional)

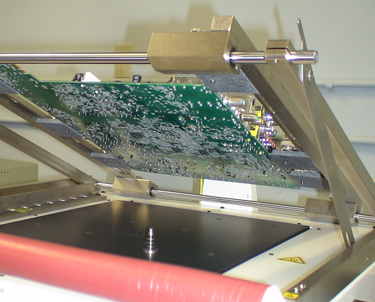

Tilt-Up Carrier

Tilt-Up Carrier (PHS1500/4000)

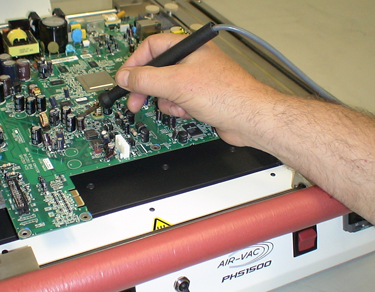

Arm Rest

Adjustable Arm Rest (all models)







Models and Specifications

PHS1500NC
Basic Preheater "hot plate", no board carrier.

• Machine Dimensions: 22"W x 21"D x 6"H
• Maximun Board Size: 13 3/8"W x 20"D"
• IR Preheater Dimensions: 12 1/4"W x 14"D
• Temperature Range: 50-260˚C
• Electrical: 1500 watts, 110 volts
• Preheater Zones: 1
• Thermocouple Channels: 1
• Temperature Controllers: 1

PHS1500
Standard Preheater, includes tilt-up board carrier.

• Machine Dimensions: 22"W x 21"D x 6"H
• Maximun Board Size: 13 3/8"W x 20"D"
• IR Preheater Dimensions: 12 1/4"W x 14"D
• Temperature Range: 50-260˚C
• Electrical: 1500 watts, 110 volts
• Preheater Zones: 1
• Thermocouple Channels: 1
• Temperature Controllers: 1

PHS4000
Large, 2-zone Preheater include tilt-up board carrier.

• Machine Dimensions: 25"W x 23"D x 6"H
• Maximun Board Size: 22"W x 20"D"
• IR Preheater Dimensions: 24 1/2"W x 20"D
• Temperature Range: 50-325˚C
• Electrical: 4000 watts, 208 volts
• Preheater Zones: 2
• Thermocouple Channels: 2
• Temperature Controllers: 2


Technical Data Subject to Change.
