Site Cleaning Nozzles
ONYX/DRS
Completely remove residual site solder without damaging pads or disturbing adjacent components.

*NOTE: DRS25 Customers please see bottom photo note at right.


Hot Gas Nozzles

Vacuum sensor automatically and continuously adjusts tip height, providing non-contact site cleaning. A High temperature composite vacuum tip eliminates metal-to-metal contact. Ready-to-use site cleaning master programs are available for fully automated solder removal (ONYX29).

Standard Nozzles & Site Cleaning Nozzle Kits
For applications where space and adjacent components are not a problem. Kits include nozzles, tips, cleaning tools, instructions, spare parts and maintenance tools.

• DRS25 Standard Nozzle #1015.11.061
• ONYX29 Standard Nozzle #1015.11.067

DRS25 Standard Nozzle Kit & Cleaning Instructions #1015.11.013
ONYX29 Standard Nozzle Kit & Cleaning Instructions #1015.11.015


Micro Nozzles & Site Cleaning Nozzle Kits
For small sites or adjacent clearance issues. Kits include nozzles, tips, cleaning tools, instructions, spare parts and maintenance tools.

• DRS25 Micro Nozzle #1015.11.063
• ONYX29 Micro Nozzle #1015.11.068

DRS25 Micro Nozzle Kit & Cleaning Instructions #1015.11.016
ONYX29 Micro Nozzle Kit & Cleaning Instructions #1015.11.014


Special Contact Nozzles

Eliminate adjacent component heating and dislodging due to high velocity air. The air is directed to the tip and out away from the area. The contact tip can be positioned accurately to the pads of micro sites and very dense assemblies. Force sensing load cells control the contact force.

• DRS25 & ONYX29 Contact Nozzle #1015.11.060


Component Removal Nozzles
Click here for DRS & ONYX component removal and replacement nozzles for BGA, CSP, Flip Chip, 0201, connectors and more.

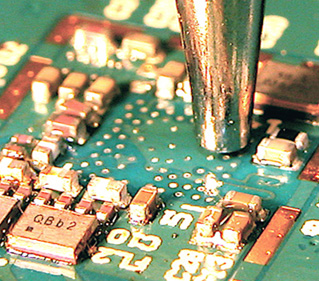

Site Clean Nozzle

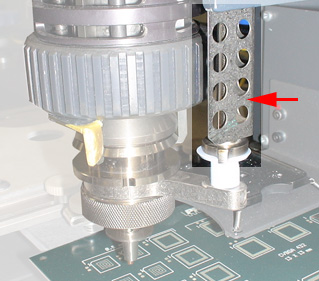

DRS25 Site Clean Connection
*NOTE: DRS25 Customers that have the above site clean nozzle connection require ONYX style site clean nozzles
Download Literature





  Air-Vac continues to provide tooling solutions for todays most intricate applications.
If you do not see a nozzle that meets your application requirements please contact Air-Vac.
