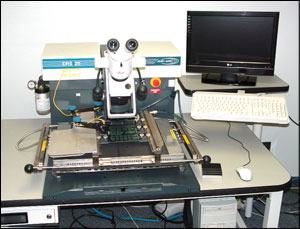

DRS25 BGA/SMD Lead-Free Rework Systems
with NEW MAJOR COMPONENTS ADDED
All refurbished
DRS25 models have new technology, new electrical and new
mechanical systems that include:
NEW High
Efficiency 16x16” Preheater (5000 watts)
NEW Programmable Board Cooling System
NEW Machine Control System
NEW Nozzle “Cool Air” Injection
NEW Desktop Computer (Windows XP),
Monitor, Keyboard and Mouse
NEW Enhanced Board Carrier (18”x24”)
- Thermal Tutor Software w/Automatic Profile Build
Function
- Leica Stereo Microscope with Zoom Lens
- Green/White LED Vision with Independent Top & Bottom
Adjustment
- Closed-Loop Air/Gas Adjustment using Mass Flow
Controller
- Real-Time Force Placement
- 8 Programmable Thermocouple Channels
- Maintenance and Verification Kit
- Topside Clearance 1.0”
Refurbished DRS25's are available in the following four
configurations:
| |
DRS25 |
DRS25XL |
DRS25T |
DRS25XLT |
| |
standard |
extra
large
boards |
extra
topside
clearance |
XL
boards and
extra topside
clearance |
|
Preheater: |
|
|
|
|
|
-
size |
16" x
16" |
24" x
16" |
16" x
16" |
24" x
16" |
|
-
zones |
2 |
3 |
2 |
3 |
|
-
watts |
5000 |
7500 |
5000 |
7500 |
| |
|
|
|
|
|
Board
size |
18" x
24" |
24" x
24" |
18" x
24" |
24" x
24" |
| |
|
|
|
|
|
Clearance: |
|
|
|
|
|
-
topside |
1.0" |
1.0" |
2.3" |
2.3" |
|
-
bottom |
1.0" |
1.0" |
0.97" |
0.97" |
e-mail
Air-Vac
for a quote or call us at 203-888-9900.
|
